RF-MT/DS-12LC-2MIV1/0.3 光缆组件

1.型号：RF-MT/DS-12LC-2MIV1/0.3
2.产品描述
RF-MT/DS-12LC-2MIV1/0.3该产品一端为：MT12多模插针，带导针和弹簧，另一端为：12个LC，主缆所用光缆为12芯多模OM3带状光纤，分支缆直径Φ2，分支长度0.3米。
3.产品主要性能指标：
链路插入损耗：≤1.2 dB

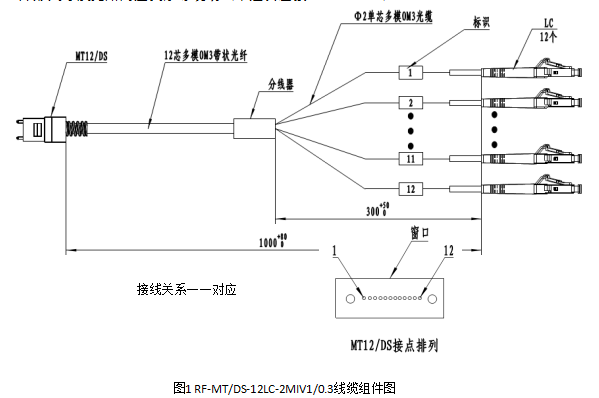

4.外形尺寸及光路对应关系等说明（未注公差按GB/T1804-m）

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
