QSFP Active Optical Cable (FTCQ-4X-CQ-Oxxx)
Description
Description
QSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. F-tone Networks QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
Features
● Full duplex 4 channel 850nm parallel active optical cable
● Transmission data rate up to 10.3125Gbit/s per channel
● SFF-8436 QSFP+ compliant
● Hot pluggable electrical interface
● Differential AC-coupled high speed data interface
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
● Low power consumption <1.5W
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
● 3.3V power supply voltage
● RoHS 6 compliant
Applications
● Infiniband transmission at 4ch SDR, DDR and QDR
● 40GBASE-SR4 40G Ethernet
● Data Centers

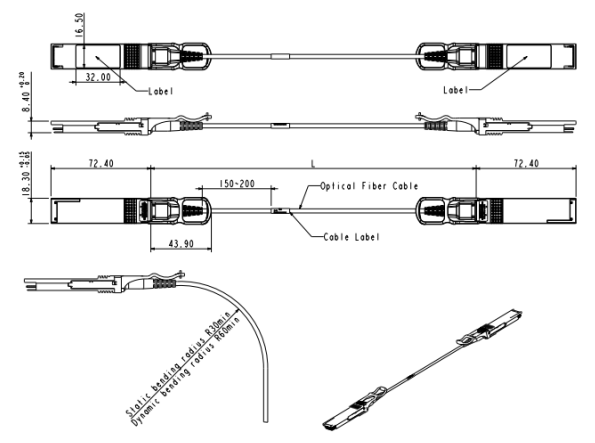

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCQ-4X-CQ-Oxxx |
xxx=different cable lengths on OM3 Multimode Fiber (MMF),0ºC ~ +70ºC |
|
FTCQ-4X-CQ-OxxxI |
xxx=different cable lengths on OM3 Multimode Fiber (MMF),-40ºC ~ +85ºC |
|
xx(x) |
Cable Length on OM3 Multimode Fiber (MMF) |
|
03 |
003=3m |
|
05 |
005=5m |
|
10 |
010=10m |
|
20 |
020=20m |
|
50 |
050=50m |
|
300 |
300=300m |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
