POB 24 路控制光收发一体模块

产品描述
FT-A6-POB-24TRL5-xxx为多路并行控制光模块，集成有 24 路并行发射和 24 路并行接收，可用作工业数据链路的并行收发功能。典型速率 DC~5Mbps，3.3V 供电，信号电平接口为 LVTTL。模块采用 OM3 多模光纤进行传输。实现了设备间的电压隔离，有效解决了 EMI 干扰及数据传输安全问题。光口采用标准MT 工业接口；电口为 100 脚 BGA，结构外形尺寸 42mm×26mm×10mm。

产品特性
● 典型速率：DC~5Mbps
● 24路发射、24路接收
● 工作温度范围：-55℃~85℃
● MT接口尾纤
● 中心接收波长850nm
● BGA可插拔电连接器
● 外形尺寸42mm×26mm×10mm

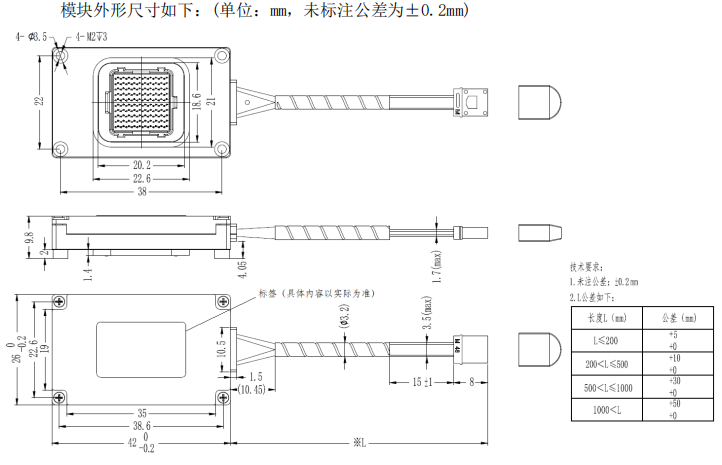

外形尺寸

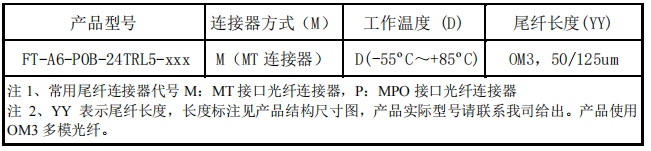

产品订购信息

注：本产品有全国产化型号可选

 本产品为FT-A6系列，仅展示部分参数，如有需要，请联系我们。
