MT24/DS-3MT12/DS-MIV3.5-LX/0.075/0.05光缆组件

1.型号：MT24/DS-3MT12/DS-MIV3.5-LX/0.075/0.05
2.产品描述
MT24/DS-3MT12/DS-MIV3.5-LX/0.075/0.05该产品A端为：MT24多模插针，带导针和弹簧，B端为：3个MT12多模插针，带导针和弹簧，所用光缆为：Φ3.5 24芯多模OM3铠甲光缆，光缆长度LX米,A端分支长0.05米，B端分支长0.075米。
3.产品主要性能指标：
链路插入损耗：≤1.2 dB

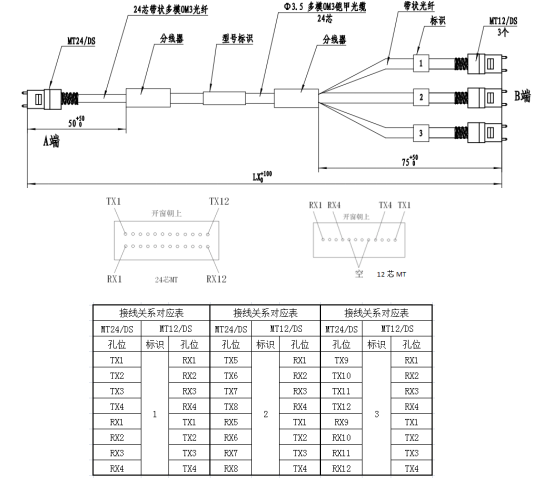

4.外形尺寸及光路对应关系等说明（未注公差按GB/T1804-m）

注：本产品有全国产化型号可选
