LCC48 10G并行四发四收光纤模块

LCC48 10G并行四发四收光模块

4.0/5 rating (2 votes)

Description

LCC48 10G并行四发四收光模块

特性

典型传输速率10G(单通道)
LCC48表贴封装,高密度,小尺寸
八路信号并行传输,收发一体模块
采用VCSEL/PIN阵列,具有功耗小的特点
工作温度-40℃~+85℃
3.3V单电源供电

应用

   甚短距离的高速数据通信连接(板级互连、机架间互连、系统级互连),服务器与存储器阵列的互连。

主要性能指标

典型传输速率

10Gbps

接口类型

MT/MPO

中心波长

850nm

平均发射光功率

-5~+1dBm(-40℃~+85℃)

接收灵敏度

≤-10dBm(-40℃~+85℃)

电源电压

3.3V

工作温度

-40℃~+85

封装尺寸

16.4×16.4×3.6(mm)

订购信息

FTPL-4TR1X-02

X

-XX

-XX

F-tone LCC48 4发4收一体光模块,10G每通道

商业级

100mm

尾纤长度(可定制)

MT  MT尾纤输出

MP  MPO尾纤输出

I 工业级

M 军品级

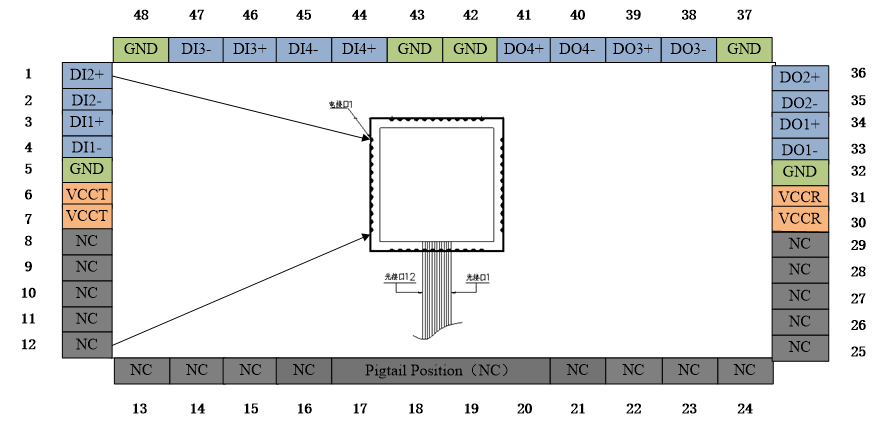

引脚定义图

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
