JYSK2M12N 光缆组件

1、型号
（1）JYSK2M12N-12LC-L1/0.3
型号说明：左端为一只 JYSK2M12N 插头，右端为 12 只 LC 插头，使用φ3 十二芯光缆，光缆总长为 1 米，主缆长度 0.3 米，其中 1-6 芯为单模光纤，7-12 芯为多模 OM3
光纤。
2、产品功能
该组件用于传输 6 路 1310nm/1550nm 和 6 路 850nm/1300nm 波长光信号。
3、光缆组件外形及尺寸
①外形图

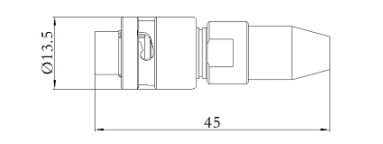

② 插头外形图

3.1 接点排列

3.2光缆对应关系

注：本产品有全国产化型号可选
