兼容中航光电 HTA8540-PH-004XX SNAP12 并行光收发一体模块

兼容中航光电 HTA8540-PH-004XX SNAP12 并行光收发一体模块

0.0/5 rating (0 votes)

Description

兼容中航光电 HTA8540-PH-004XX SNAP12 并行光收发一体模块

产品描述
此款是一款高性能四路并行光收发一体模块,用于甚短距离多通道光互联通信。模块的中心波长为 850nm,每个通道提供 10.3125Gbps 传输速率。模块光接口使用 MPO 接头,电气接口使用 10x10 MEG-Array。本产品可广泛应用于背板互联、雷达与处理机互联、并行光互联、服务器与存储器阵列互联。

产品特性
● 兼容POP4 MSA矩阵连接器
● 4路独立发射通道、4路独立接收通道
● 每通道支持10.3125Gbps的传输速率
● 3.30V供电
● 850nm的工作波长,多模光纤,传输距离D≤100m
● CML信号电平
● 宽工作温度范围:-40ºC~+85ºC
● 无散热柱区域高度9.23mm

产品性能指标

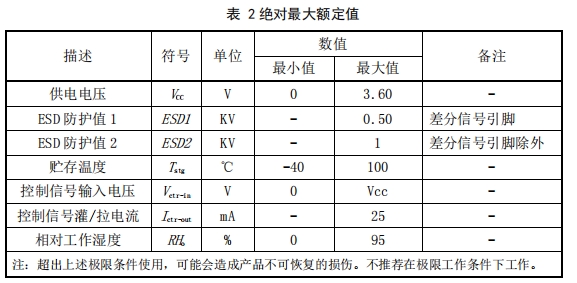

1. 极限条件240315 19

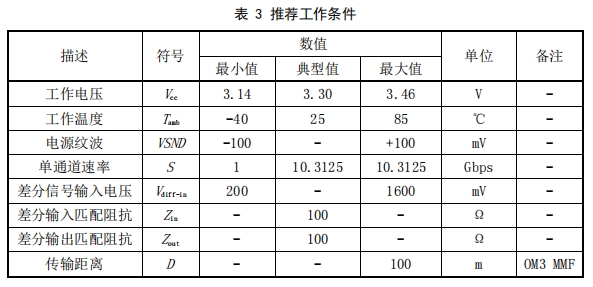

2.推荐工作条件240315 19

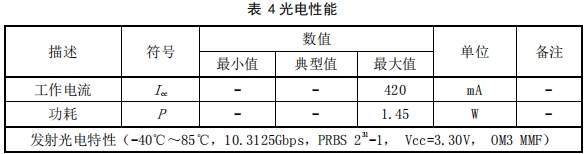

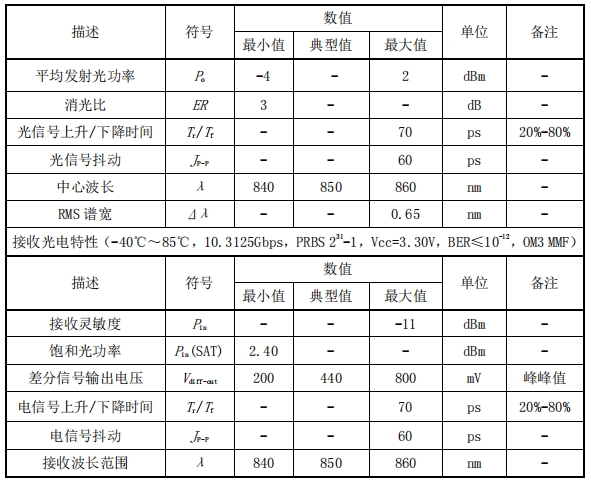

3.产品技术指标240315 19240315 19

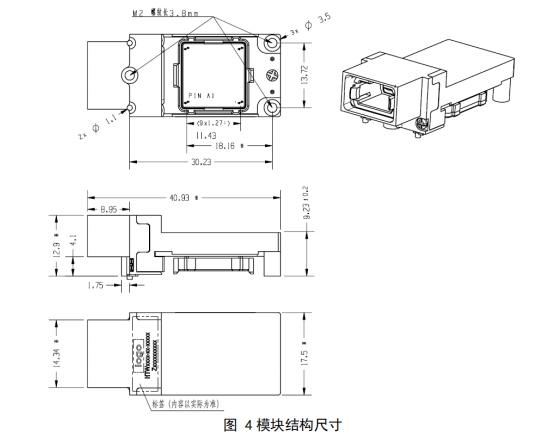

结构尺寸

240315 19

其他还有大量可替换中航光电、avago 、finisar ....等等品牌的产品,请联系北亿纤通的市场人员













Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
