兼容中航光电 HTA8506-MD-Q0D3YY 4 路带 DDMI 并行光收发一体模块

兼容中航光电 HTA8506-MD-Q0D3YY 4 路带 DDMI 并行光收发一体模块

0.0/5 rating (0 votes)

Description

兼容中航光电 HTA8506-MD-Q0D3YY 4 路带 DDMI 并行光收发一体模块

产品描述
此系列为4 路并行光收发一体模块,主要应用于背板、高清音视频传输等并行光互连领域,具有电磁辐射小、抗干扰能力强等特点,能够实现对模块温度、电压、发射、接收光功率的实时监控。模块采用 VCSEL 阵列,具有功耗小的特点。模块的发射波长为 850nm,MT/MPO 式尾纤接口。采用 LCC 封装形式,工作温度范围为-55~85℃。
本产品可广泛应用于背板互联、雷达与处理机互联、并行光互联、高清音视频光传输。

产品特性
● LCC48表面贴装形式,小尺寸封装
● 4.25G 传输速率
● 工作温度范围:-55℃~85℃
● 传输距离:OM3 300米
● MT/MPO尾纤接口
● 功耗小于1.8W
● 控制端COMS兼容
● 850nm 发射波长
● IIC通信功能

产品性能指标

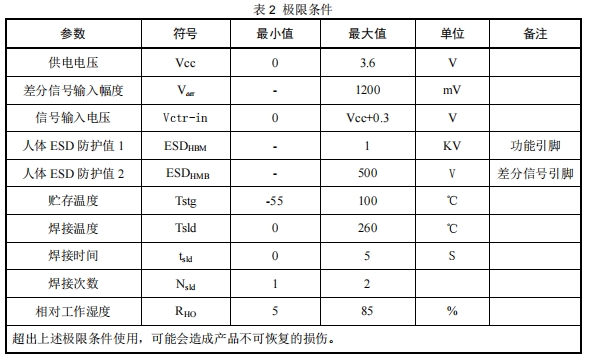

1. 极限条件240315 8

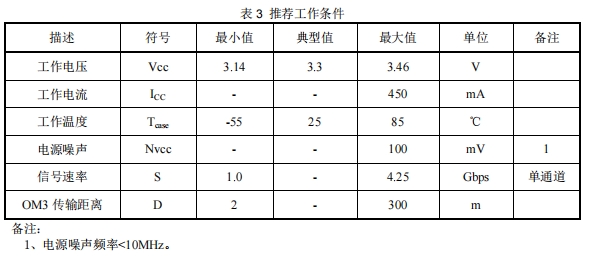

2.推荐工作条件240315 8

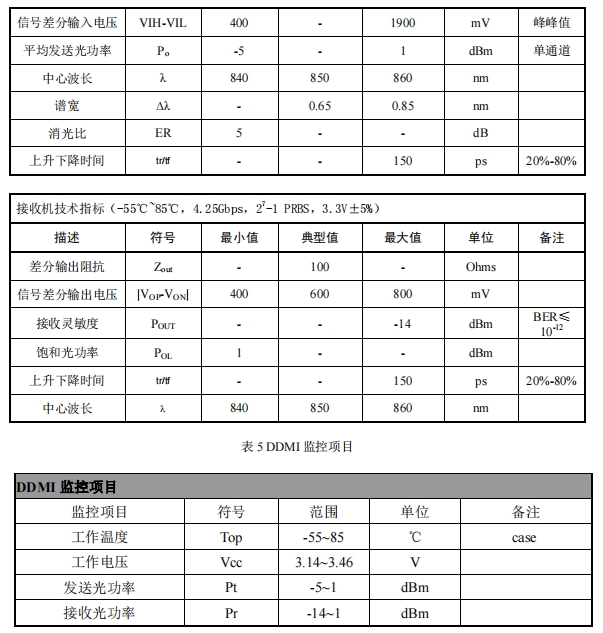

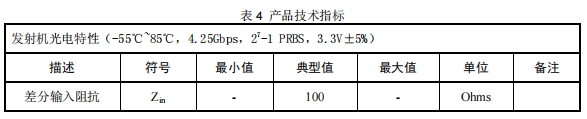

3.产品技术指标240315 8240315 8

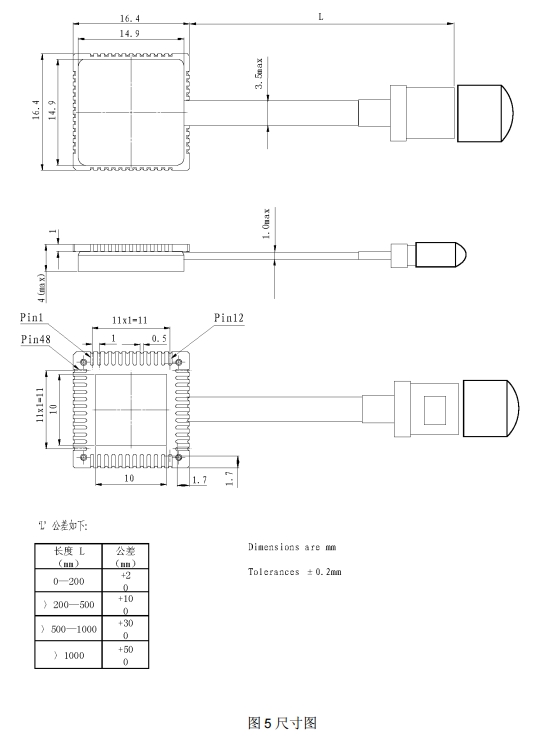

结构尺寸
240315 9

其他还有大量可替换中航光电、avago 、finisar ....等等品牌的产品,请联系北亿纤通的市场人员















Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
