GYM18系列光缆组件

0.0/5 rating (0 votes)

Description

GYM18系列光缆组件

D57

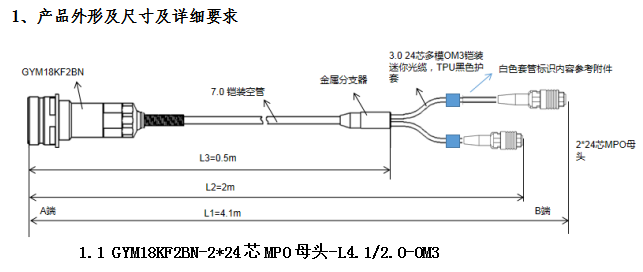

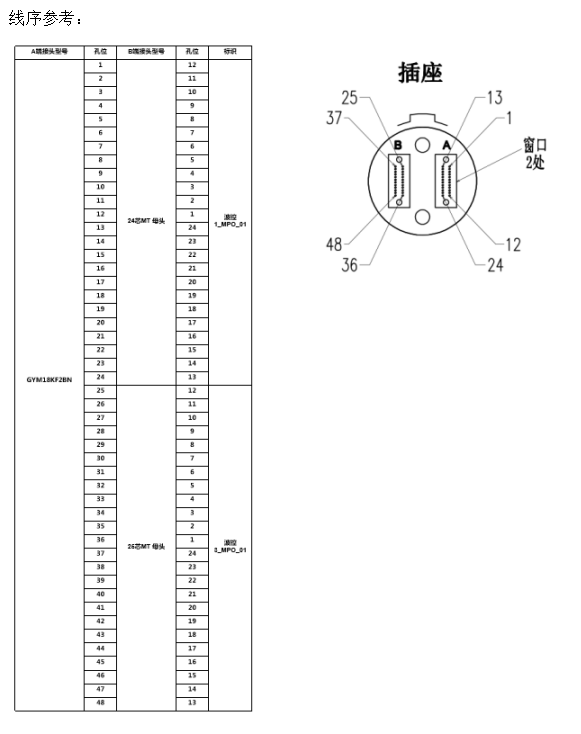

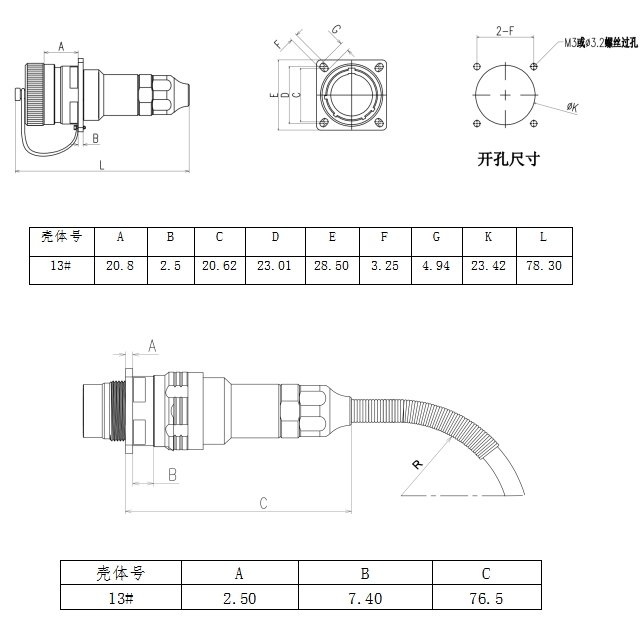

1.1型号说明：产品A端为1个GYM18KF2BN插座，B端为2个24芯MPO母头，光缆为2条3.0  24芯多模OM3铠装迷你光缆，TPU黑色护套，长度详见连接示意图链路损耗：≦0.5+0.5+3.5dB/km*Lm（850nm）D57D57

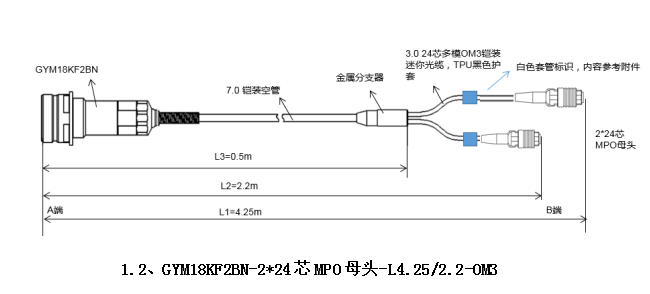

1.2.型号说明：产品A端为1个GYM18KF2BN插座，B端为2个24芯MPO母头，光缆为2条3.0  24芯多模OM3铠装迷你光缆，TPU黑色护套，长度详见连接示意图链路损耗：≦0.5+0.5+3.5dB/km*Lm（850nm）D57D57

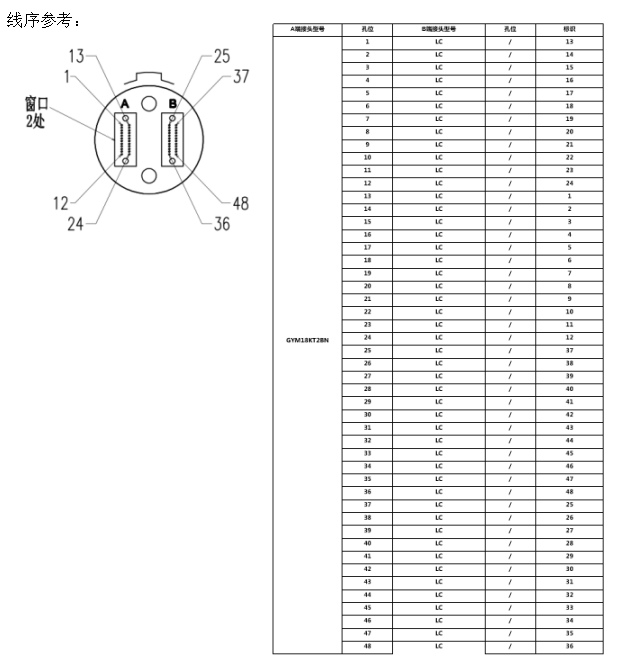

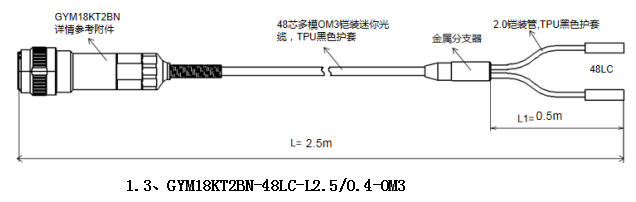

1.3.型号说明：产品一端为1个GYM18KT2BN插头，另一端为48个LC接头，光缆为 48芯多模OM3铠装迷你光缆，TPU黑色护套，长度2.5m，链路损耗：≦0.5+0.3+3.5dB/km*Lm（850nm）

D57D57D57D57D57D57











注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
