10Gbps MiniSFF LC Transceiver (10Km)

10Gbps MiniSFF LC Transceiver (10Km)

0.0/5 rating (0 votes)

Description

10Gbps MiniSFF LC Transceiver (10Km)

FEATURES
● Surface mount I/O pins for high speed signal integrity
● All metal body, screw mounting
● Industrial Temp range, vibration tolerant design
● 2-Fiber MiniSFF LC Transceiver
● 1310 DFB transmitter,PIN photo-detector Receiver
● Distance up to 10 km
● SFF-8472 Digital Diagnostic Function
● Single 3.3V Power Supply
● Operating Temperature
FTRS-131X-10-DW : 0℃~+70℃
FTRS-131X-10I-DW :-40℃~+85℃

APPLICATIONS
● 10GBASE-LR/LW 10G Ethernet

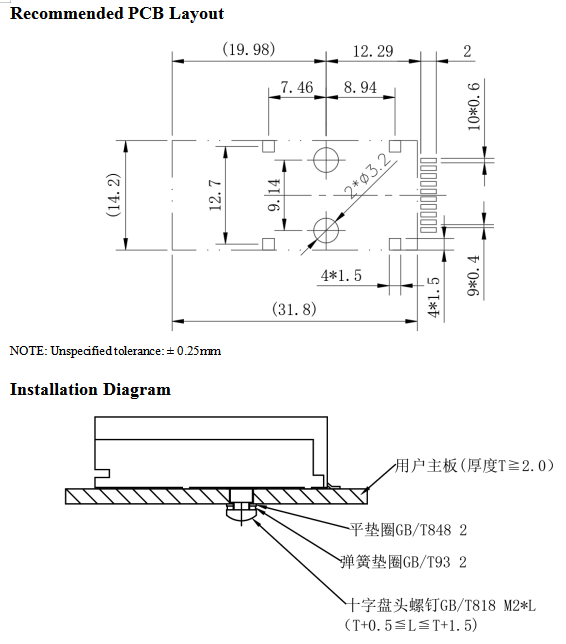

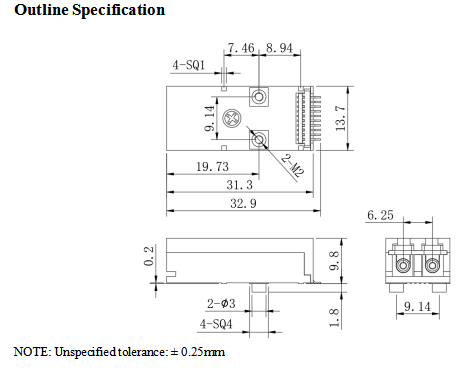

A38A38

Ordering Information

P/No.

Package

Bit Rate

(Gb/s)

Dist.

(km)

Wavelength

(nm)

TX

Power

(dBm)

RX

Sens

(dBm)

Volt.

(V)

Temp.

(℃)

DDM

FTRS-131X-10-DW

LC

10.3125

10

1310

-2 to +3

-14.4

3.3

0 ~70

YES

FTRS-131X-10I-DW

LC

10.3125

10

1310

-2 to +3

-14.4

3.3

-40 ~85

YES











本产品为FTRS系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
