0~100Mbps MINISFF LVTTL Single Mode Transceiver(10Km)

0~100Mbps MINISFF LVTTL Single Mode Transceiver(10Km)

0.0/5 rating (0 votes)

Description

0~100Mbps MINISFF LVTTL Single Mode Transceiver(10Km)

FEATURES
● Allmetalbody,screwmounting
● 1310 FP transmitter
● MiniSFF LC Transceiver
● DC~100M Data Rate
● LVTTL Inputs & Outputs
● Distance up to 10km
● Single 3.3V Power Supply
● RoHs Compliance
● Operating case temperature:
      FT-95-RS-13L4-10 : 0℃ to 70℃
      FT-95-RS-13L4-10I : -40℃ to 85℃

APPLICATIONS
● Low Rate Bus transmission
● Unbalanced Signal transparent transmission

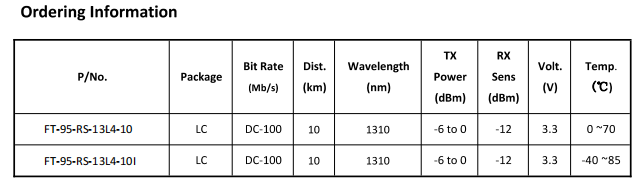

A33A33A33













本产品为FT-95-RS系列，仅展示部分参数，如有需要，请联系我们。
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
