DC-2Mbps CWDM 1×9 TTL Transceiver Module

DC-2Mbps CWDM 1×9 TTL Transceiver Module

0.0/5 rating (0 votes)

Description

DC-2Mbps CWDM 1×9 TTL Transceiver Module

Product Description
F-tone Networks’s FTTR-CxxL1-80xx series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 2Mbps. The module is fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provides the system designer with products to RS232/RS485/RS422 fiber transmission.

Product Features
● 1470nm~1610nm CWDM DFBLaser Diode Transmitter
● Up to 80 Km on 9/125μm SMF
● 3.3V or 5Vpower supply
● SC/ST/FC duplex optical interface
● (LV)TTL Input /Output and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

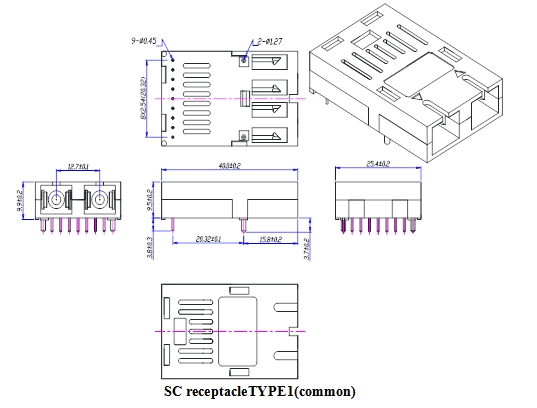

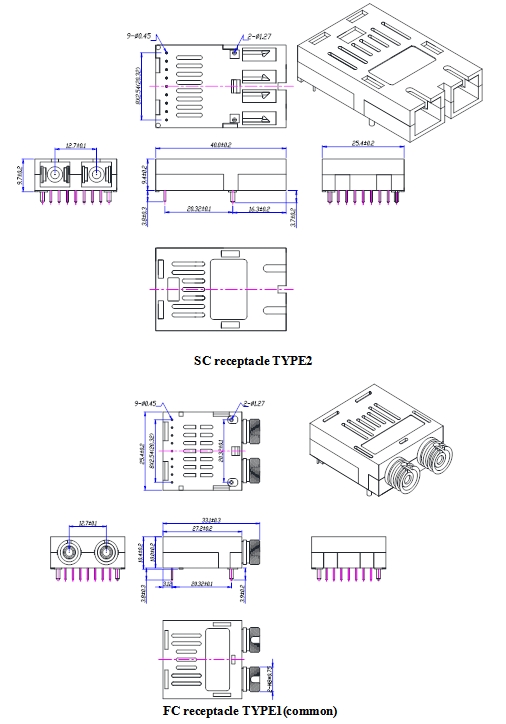

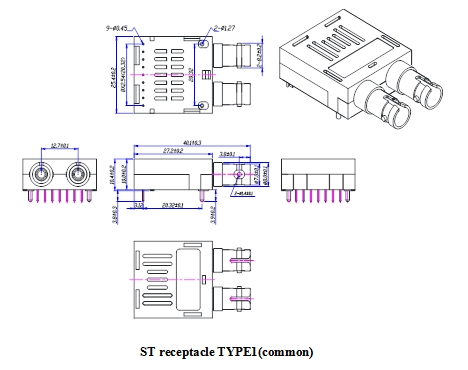

Module Outline Drawing（Units in mm)122122122

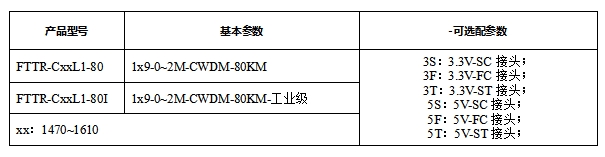

Order Information122













注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
