九十六芯光缆组件

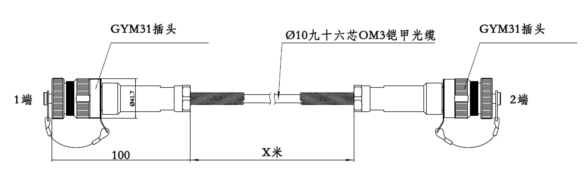

1．产品外形图
1.1插头组件型号：J599MT/26KG96BIN-J599MT/26KG96BIN-L30
表示：两端为96芯的J599MT/26KG96BIN插头，光缆为96芯OM3铠装光纤，光缆总长30米。

1.2 接点排列

1.3 光路对应关系：一一对应。
2．产品性能
2.1光学性能
工作波长：，多模1300/850nm
GYM31:插入损耗:≤0.75dB
2.2机械性能
机械寿命：500 次
振动：10Hz-2000Hz
冲击：490m/s²
2.3工作环境
温度：-40℃～+80℃

注：本产品有全国产化型号可选
