Description
The F-tone Networks FTCQ-5X6-SR4xx is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand FDR/QDR/DDR/SDR,16G/10G/8G/4G/2G fiber channel , PCIe and SAS Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 56 Gbps bandwidth. Each lane can operate at 14.0625 Gbps up to 100 m using OM3 fiber or 150 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.QSFP+ SR4 is one kind of parallel transceiver. VCSEL and PIN array package is key technique, through I2C system can contact with module.

Features
● Four-channel full-duplex transceiver modules
● Transmission data rate up to 14.0625Gbit/s per channel
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Low power consumption <1.5W
● Housing isolated from connector ground
● 3.3V power supply voltage
● RoHS 6 compliant
● Hot Pluggable QSFP form factor
● Maximum link length of 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
● Single MPO connector receptacle
● Case operating temperature
      Commercial: 0 ~ +70℃
      Industrial: -40 ~ +85℃

Applications
● InfiniBand FDR
● 16x Fibre Channel
● PCI-e3.0
● Proprietary High Speed Interconnections
● SAS 3.0

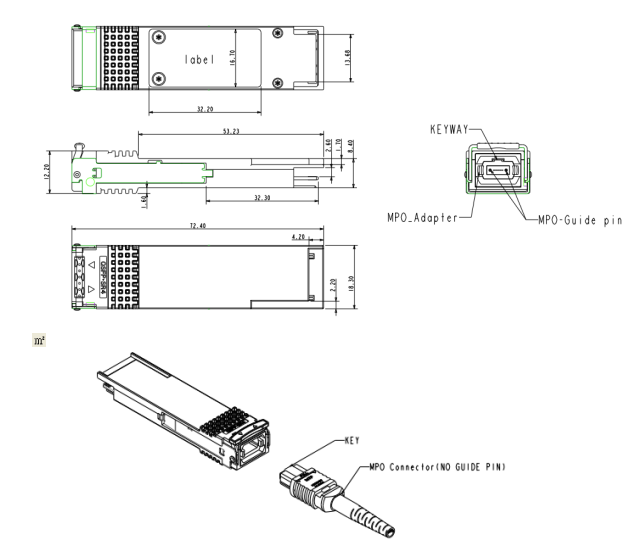

Mechanical Dimensions

Ordering information
