48路0~20M 850nm 光发射模块

产品特点
● 48 路并行发射
● 工作速率范围 DC~20Mbps
● 3.3V 供电
● LVTTL信号电平接口
● OM3 50/125um 多模光纤传输
● 光口采用标准MT 工业接口，电口为10x10 弹片连接器
● 外形尺寸为 42×26×11mm
● 工作温度范围为-40℃～+85℃

产品应用
● 工业数据链路的并行收发

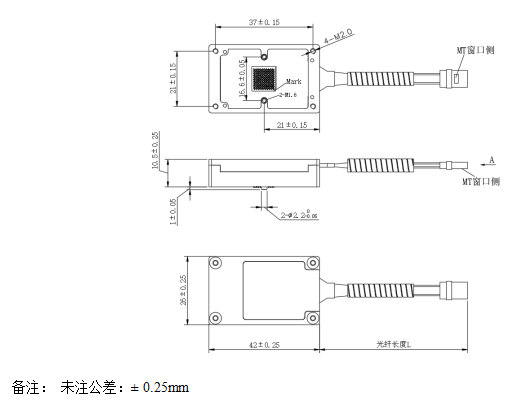

产品尺寸
订购须知

注：尾纤长度可定制

注：本产品有全国产化型号可选
本产品为FTZE系列，仅展示部分参数，如有需要，请联系我们。
