4路集成 CWDM 光收发一体模块 ST

0.0/5 rating (0 votes)

Description

4路集成 CWDM 光收发一体模块 ST

产品描述
● 3.3V 供电
● 每通道 10.3125 Gbps 的最大传输速率
● CML 高速信号电平
● 具备 I2C 通信监控功能
● 工作中心波长 1271nm、1291nm、1311nm、1331nm,单模光纤
● 传输距离 10km
● ST 光接口,LGA 电连接器
● 宽工作温度范围
● 结构尺寸 80mm×30mm×12.5mm
● 工作温度: -55℃~+85℃

产品应用
● CWDM 高速光互联、雷达与处理机互联
● 10km内的高速数据通信连接、服务器与存储器阵列互联

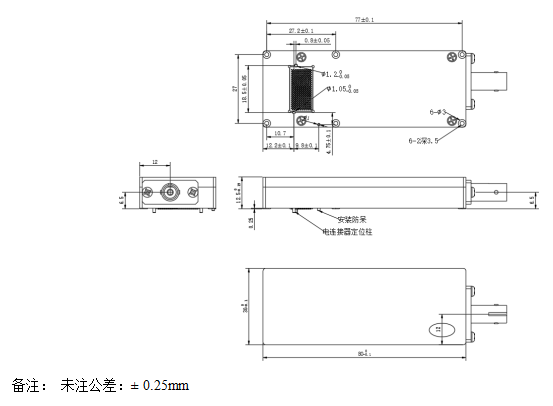

产品尺寸FTJM 2
订购须知

产品型号

光接口

电接口

速率(单通道)(Gb/s)

发射光功率(dBm)

接收灵敏度(dBm)

工作温度(℃)

FTJM-4TR1X-10DM

ST

LGA

10.3125

-5~+2

-9

-55 ~85













注:本产品有全国产化型号可选
本产品为FTJM系列,仅展示部分参数,如有需要,请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
