3Gbps Video CWDM SFP Transceiver(20km)

3Gbps Video CWDM SFP Transceiver(20km)

0.0/5 rating (0 votes)

Description

3Gbps Video CWDM SFP Transceiver(20km)

FEATURES
● Speed from 50 Mbps to 3Gbps
● Distance up to 20 km for 3G-SDI
● Support Video Pathological Patterns for SD-SDI,HD-SDI and 3G-SDI
● 1270～1610nm CWDM Cooled DML transmitter
● duplex LC receptacle
● Based on Industry Standard SFP
● Single +3.3 V Power Supply
● RoHS-6 Compliant
● Class 1 Laser International Safety Standard IEC-60825 Compliant
● Operating Temperature Standard : -55℃~+85℃

APPLICATIONS
● High-density Video Routers

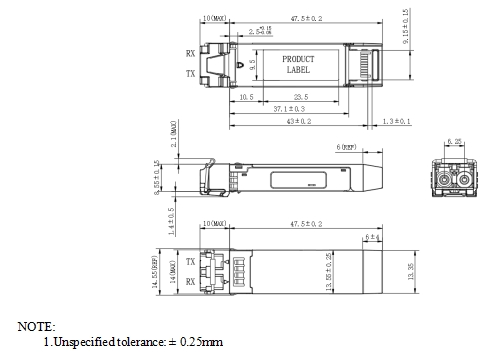

Mechanical Dimensions74

Ordering Information

P/No.

Wavelength(nm)

TX Power(dBm)

RX Sens(dBm)

Package

Bit Rate(Mb/s)

Volt.(V)

DDM

Temp.(℃)

FTCS-C273G-20DM

1270CWDM

-3 to +2

-18

LC

3000

3.3

YES

-55 ~85

FTCS-C293G-20DM

1290CWDM

-3 to +2

-18

FTCS-C313G-20DM

1310CWDM

-3 to +2

-18

FTCS-C333G-20DM

1330CWDM

-3 to +2

-18

FTCS-C353G-20DM

1350CWDM

-3 to +2

-18

FTCS-C373G-20DM

1370CWDM

-3 to +2

-18

FTCS-C393G-20DM

1390CWDM

-3 to +2

-18

FTCS-C413G-20DM

1410CWDM

-3 to +2

-18

FTCS-C433G-20DM

1430CWDM

-3 to +2

-18

FTCS-C453G-20DM

1450CWDM

-3 to +2

-18

FTCS-C473G-20DM

1470CWDM

-3 to +2

-18

FTCS-C493G-20DM

1490CWDM

-3 to +2

-18

FTCS-C513G-20DM

1510CWDM

-3 to +2

-18

FTCS-C533G-20DM

1530CWDM

-3 to +2

-18

FTCS-C553G-20DM

1550CWDM

-3 to +2

-18

FTCS-C573G-20DM

1570CWDM

-3 to +2

-18

FTCS-C593G-20DM

1590CWDM

-3 to +2

-18

FTCS-C613G-20DM

1610CWDM

-3 to +2

-18













注：本产品有全国产化型号可选
本产品为Video SFP系列光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
