两光二十一电光电混装组件

一、 型号
①插头组件：J599/26KE2G21KN-J599/26KE2G21KN-MIV15
型号说明：两端为J599/26KE2G2IKN插头(两光二十一电),使用10mm光电复合缆，长度15米。
②插座组件：J599/20KE2G21ZN-2LC-MIV2-L1
型号说明：左端为J599/20KE2G21ZN插座(两光二十一电),使用多模单芯OM3铠装光缆，另外一端为LC插头，光缆长度1米。
二、 产品外形及尺寸
1、插头组件：
①组件外形图

②插头外形图

③接点排列

其中b、c孔位为光纤信号，A-w共21芯为电信号。

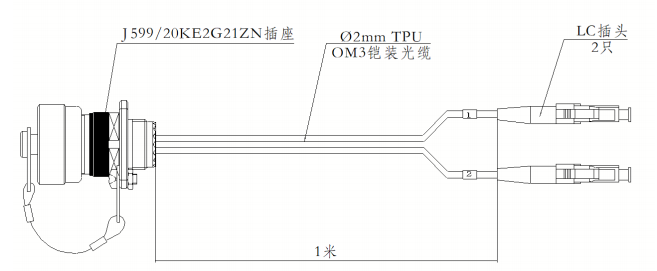

三、插座组件：
①组件外形尺寸

②插座外形尺寸

四、光电复合缆截面图

五、产品性能

注：本产品有全国产化型号可选
