1x9 2.488Gbps Bi-Di Transceiver Module

1x9 2.488Gbps Bi-Di Transceiver Module

0.0/5 rating (0 votes)

Description

1x9 2.488Gbps Bi-Di Transceiver Module

Product Description
F-tone’s FTTR-BXX24-XXX series of transceiver modules are the perfect solution for High-speed communication networks.The transceiver modules support data rates up to 2488 Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The FTTR-BXX24-XXX series is high performance module for single fiber communications. The transmitter section uses a DFB laser diode and is a class 1 laser compliant according to International Safety Standard IEC-825.

Product Features
● Single Fiber Bi-Directional Transceiver
● DFB /CWDM Laser Diode Transmitter
● Up to 0~120Km with 9/125μm SMF
● Data rates Up to 2488Mbps
● Industry Standard 1 x 9 Footprint
● Simplex SC/FC/ST Connector
● PECL signal input and output, TTL logic level signal detect output
● Single 3.3V power supply
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Wave solderable and washable with process plug inserted
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level
● ESD Level: 4
● Compatible with ROSH6
● MSL Level: 1

Application
● ATM
● SONET/SDH Equipment Interconnect
● Fiber channel

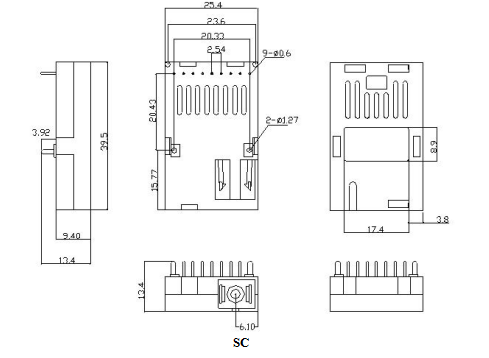

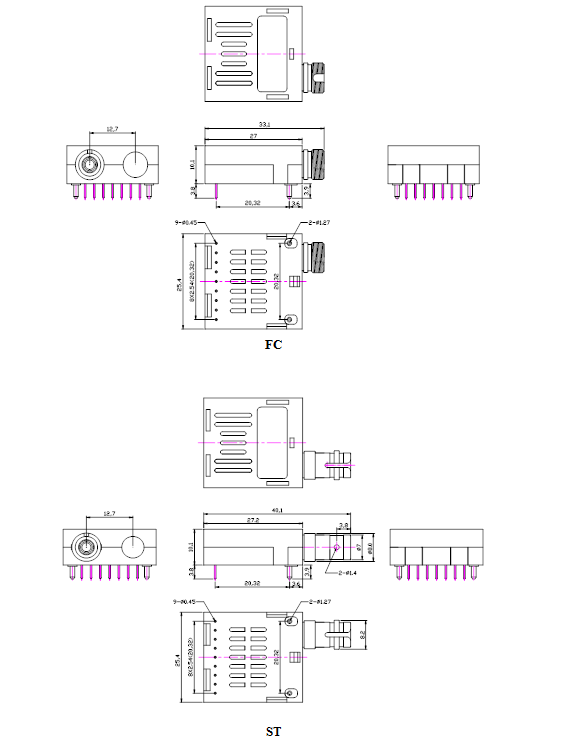

Module Outline Drawing

6565

Ordering information

Part Number

Product Description

FTTR-B1324-20

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;0 to +70°C

FTTR-B1524-20

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;0 to +70°C

FTTR-B1324-20F

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;0 to +70°C

FTTR-B1524-20F

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;0 to +70°C

FTTR-B1324-20T

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;0 to +70°C

FTTR-B1524-20T

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;0 to +70°C

FTTR-B1324-40

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C

FTTR-B1524-40

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C

FTTR-B1324-40F

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C

FTTR-B1524-40F

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C

FTTR-B1324-40T

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C

FTTR-B1524-40T

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C

FTTR-B4524-40

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C

FTTR-B5424-40

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C

FTTR-B4524-40F

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C

FTTR-B5424-40F

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C

FTTR-B4524-40T

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C

FTTR-B5424-40T

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C

FTTR-B4524-60

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;0 to +70°C

FTTR-B5424-60

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;0 to +70°C

FTTR-B4524-60F

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;0 to +70°C

FTTR-B5424-60F

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;0 to +70°C

FTTR-B4524-60T

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;0 to +70°C

FTTR-B5424-60T

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;0 to +70°C

FTTR-B1324-20I

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;-40 to +85°C

FTTR-B1524-20I

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;-40 to +85°C

FTTR-B1324-20FI

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;-40 to +85°C

FTTR-B1524-20FI

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;-40 to +85°C

FTTR-B1324-20TI

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;-40 to +85°C

FTTR-B1524-20TI

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;-40 to +85°C

FTTR-B1324-40I

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C

FTTR-B1524-40I

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C

FTTR-B1324-40FI

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C

FTTR-B1524-40FI

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C

FTTR-B1324-40TI

1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C

FTTR-B1524-40TI

1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C

FTTR-B4524-40I

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C

FTTR-B5424-40I

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C

FTTR-B4524-40FI

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C

FTTR-B5424-40FI

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C

FTTR-B4524-40TI

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C

FTTR-B5424-40TI

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C

FTTR-B4524-60I

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;-40 to +85°C

FTTR-B5424-60I

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;-40 to +85°C

FTTR-B4524-60FI

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;-40 to +85°C

FTTR-B5424-60FI

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;-40 to +85°C

FTTR-B4524-60TI

1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;-40 to +85°C

FTTR-B5424-60TI

1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;-40 to +85°C

80KM/120KM Customized Transceivers,Please contact our sales













注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
