155Mbps 2X5 SFF BIDI Transceiver Module

Product Description
F-toneNetworks’s FTAF-B1303-40xx series of transceiver modules are the perfect solution for high-speed communication networks.FTAF-Bxx03-xxx series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
F-toneNetworks’s FTAF-Bxx03-xxx Small Form Factor (SFF) transceivers comply with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). They also comply with SONET OC-3 SR-1/IR-1 (SDH STM I-1/S-1.1) standards2.
The family provides a uniform form factor for a wide variety of standard connections to transmission media. The converters can be inserted or removed from a host chassis without removing power from the host system.

Product Features
● 1310nm FP or 1550nm FP(or DFB) Laser Transmitter
● Up to 80 Km with 9/125μm SM
● Single 3.3V power supply
● Standard 2X5 pin footprint (MSA Compliant)
● Single SC connector
● LVPECL/CMLSignal Input / Output
● LVTTL Signal Detect
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
● Operating case temperature range(Standard level :
0°C to +70℃) or (Industrial level: -40°C to +85°C)

Application
● ATM
● Fiber channel
● SONET/SDH
● Fast Ethernet
● Other optic link

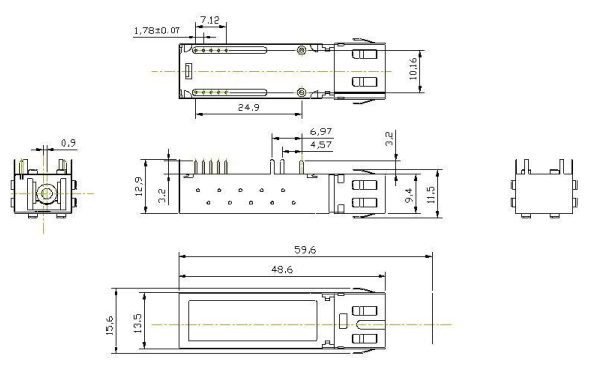

Mechanical Specifications

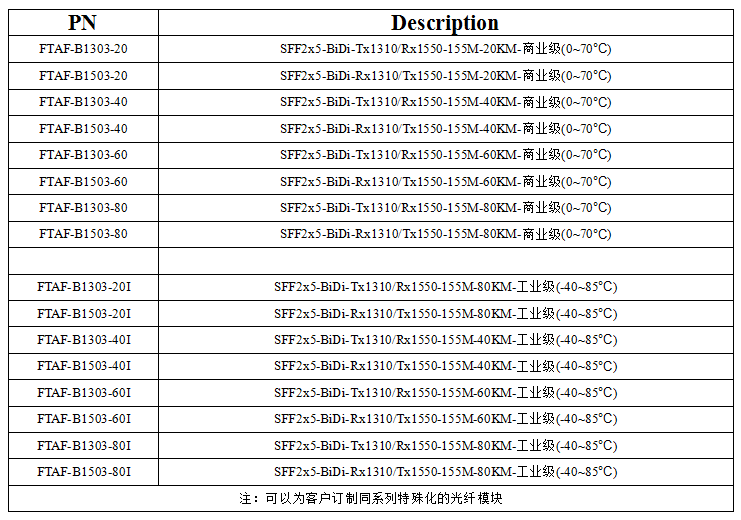

Ordering information

注：本产品有全国产化型号可选

本产品为FTAF系列，仅展示部分参数，如有需要，请联系我们。
