12GHz DWDM 模拟光收发模块

特点
● 超宽的工作频段：10MHz~12GHz
● 波长支持 ITU-C 波段，丰富 1550nm DWDM 波长可选
● 良好的线性指标
● 噪声良好
● 平坦的带内波动
● 大动态

运用
● 天线拉远
● 保密通信
● 相控阵天线系统
● 分布式天线系统
● 电子对抗
● OFDM 光纤传输系统

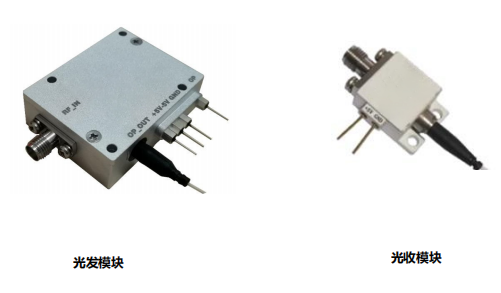

产品图

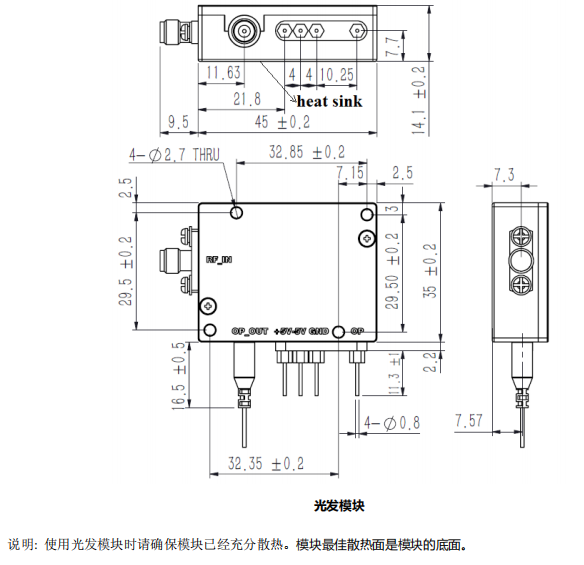

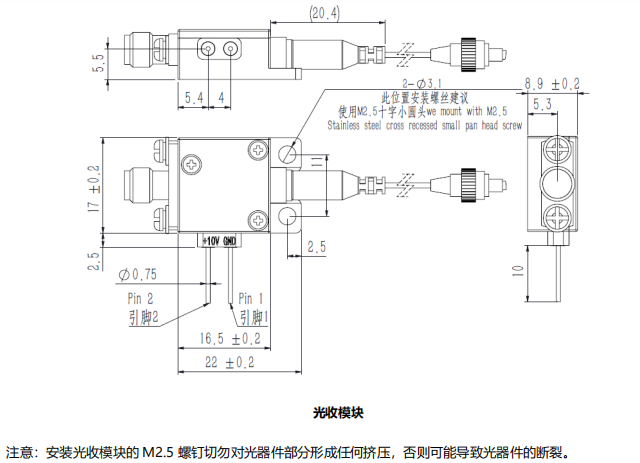

机械结构（ 单位: mm)

订购信息

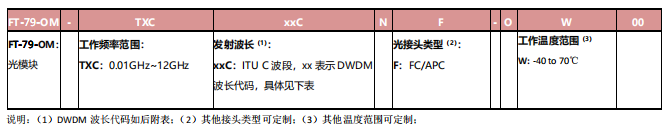

光发模块：

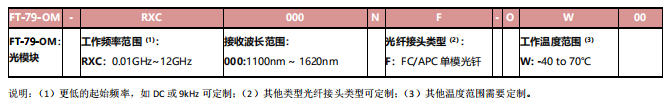

光收模块：

注：本产品有全国产化型号可选
本产品为FT-79系列如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
