125~1250Mbps 1X10 MiniSFF Transceiver

125~1250Mbps 1X10 MiniSFF Transceiver

0.0/5 rating (0 votes)

Description

125~1250Mbps 1X10 MiniSFF Transceiver

FEATURES
● Surface mount I/O pins for high speed signal integrity
● All metal body, screw mounting
● Industrial Temp Range, Vibration tolerant design
● 850nm VCSEL Transmitter
● 300 m links with 62.5/125 mm MMF Cables
● 500 m links with 50/125 mm MMF Cables
● Single 3.3V Power Supply
● SFF-8472 Digital Diagnostic Function
● 2-Fiber MiniSFF LC Transceiver
● Operating Temperature
       Standard : 0℃~+70℃ (FTMF-8512-02D)
       Industrial: -40℃~+85℃ (FTMF-8512-02DI)

APPLICATIONS
● SONET/SDH Equipment Interconnect
● Fiber Channel Links

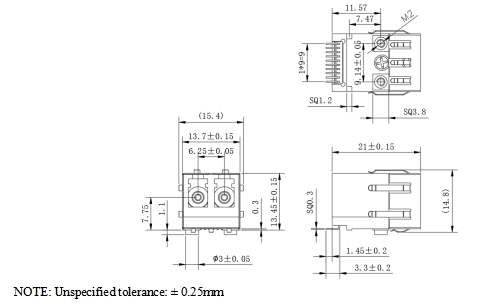

Outline SpecificationFTMF 1

Ordering Information

P/No.

Package

Bit Rate(Mb/s)

Dist.(m)

Wavelength(nm)

Volt.(V)

TX Power(dBm)

RX Sens(dBm)

Temp.(℃)

FTMF-8512-02D

LC

125~1250

500

850

3.3

-9.5~-3

-18

0~70

FTMF-8512-02DI

LC

125~1250

500

850

3.3

-9.5~-3

-18

-40~85













注：本产品有全国产化型号可选

本产品为FTMF系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
