10Gbps Single Mode BIDISFP+ Transceiver (10Km)
Description
10Gbps Single Mode BIDISFP+ Transceiver (10Km)
FEATURES
● Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
● Operating data rate up to 10.3Gbps
(DE):1270nm DFB Laser transmitter,1330nm receiver
(ED):1330nm DFB Laser transmitter,1270nm receiver
● Single 3.3V Power supply
● AC/AC Coupling according to MSA
● Applicable for 10km SMF connection
● Single +3.3 V Power Supply
● RoHS Compliant
● Class 1 Laser International Safety Standard IEC-60825 Compliant
● Operating case temperature:
FTCS-B331X-10D : 0 ℃to 70℃
FTCS-B331X-10DI : -40 ℃to 85℃
APPLICATIONS
● 10GBASE-LR at 10.3125Gbps
● 10GBASE-LW at 9.953Gbps
● Other Optical Links

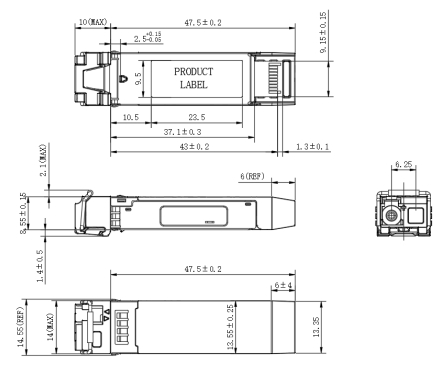

Mechanical Dimensions
Part Number Ordering Information
|
P/No. |
Package |
Bit Rate(Gb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
TX Power(dBm) |
RX Sens(dBm) |
Temp.(℃) |
|
FTCS-B271X-10D |
LC |
10 |
10 |
1270/1330 |
3.3 |
-8.2 to 0.5 |
-14.4 |
0 ~70 |
|
FTCS-B331X-10D |
LC |
10 |
10 |
1330/1270 |
3.3 |
-8.2 to 0.5 |
-14.4 |
0 ~70 |
|
FTCS-B271X-10DI |
LC |
10 |
10 |
1270/1330 |
3.3 |
-8.2 to 0.5 |
-14.4 |
-40 ~85 |
|
FTCS-B331X-10DI |
LC |
10 |
10 |
1330/1270 |
3.3 |
-8.2 to 0.5 |
-14.4 |
-40 ~85 |
注：本产品有全国产化型号可选
本产品为BIDI SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
