10Gbps 10km SFP+ SONET Optical Transceiver

Product description
This 1310 nm DFB 10Gbps SFP+ SONET transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.The SFP+ 10km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.

Features
● Optical interface compliant to IEEE 802.3ae/OC192/STM-64
● Electrical interface compliant to SFF-8431
● Hot Pluggable
● 1310nm DFB transmitter, PIN photo-detector
● Dual CDR with 9.95-11.3Gb/s
● Operating case temperature:
        Standard : 0 to +70°C
        Industrial : -40 to +85°C
● Low power consumption
● Applicable for 10km SMF connection
● All-metal housing for superior EMI performance
● Advanced firmware allow customer system encryption information to be stored in transceiver
● Cost effective SFP+ solution, enables higher port densities and greater bandwidth
● RoHS6 compliant (lead free)

Applications
● 10G SONET
● 10G Ethernet
● 10G Fiber Channel (with/without FEC)

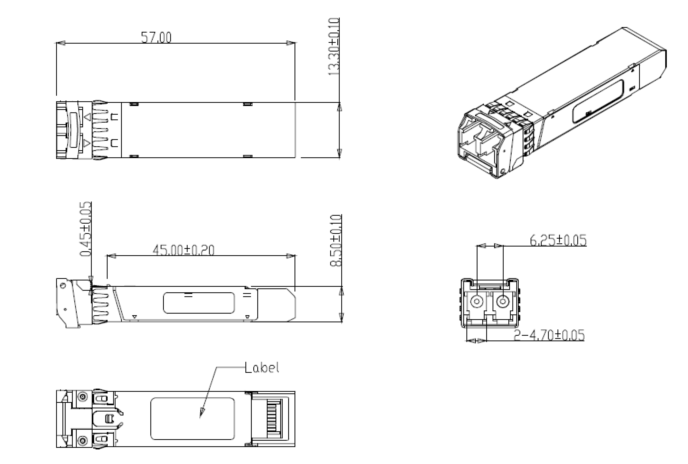

Mechanical Specifications

Order Information

注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
