10Gb/s SFP+ BIDI 80km Optical Transceiver Module

Description
F-tone’FTCS-B451X-80Dxx/FTCS-B541X-80Dxx SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
FTCS-B451X-80Dxx/FTCS-B541X-80Dxx transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Features
● Up to 11.1Gb/s data rate
● 1490nm EML laser and APD receiver for FTCS-B451X-80Dxx
● 1550nm EML laser and APD receiver for FTCS-B541X-80Dxx
● 2-wire interface with integrated Digital Diagnostic monitoring
● Up to 80km transmission on SMF
● BIDI LC optical connector
● Single +3.3V power supply
● RoHS-10 compliant and lead-free
● Compliant with SFF+MSA and SFF-8472
● Maximum power consumption 1.8W
● Metal enclosure, for lower EMI
● Meet ESD requirements, resist 8KV direct contact voltage
● Operating case temperature
     Commercial: 0 ~ +70℃
     Extended: -10 ~ +80℃
     Industrial: -40 ~ +85℃

Applications
● Back to Back
● 10GBASE-ZR/ZW
● 10G Ethernet

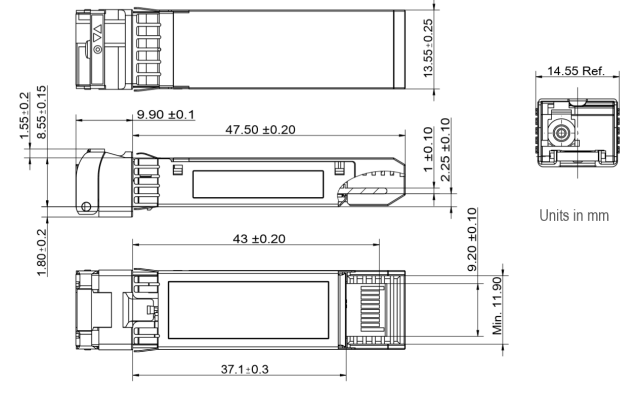

Mechanical Dimensions

Part Number Ordering Information

注：本产品有全国产化型号可选
本产品为BIDI SFP+系列光模块，如有需要，请联系我们。
