10Gb/s SFP+ 1550nm 120km Transceiver

Product Description
F-tone Networks’FTCS-151X-H2Dxx SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 120km over single mode fiber. The module consists of 1550nm EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
FTCS-151X-H2Dxx transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Features
● Up to 11.3Gb/s data links
● 1550nm EML transmitter and APD receiver
● Up to 120km on 9/125µm SMF
● Hot-pluggable SFP+ footprint
● Duplex LC/UPC type pluggable optical interface
● RoHS-10 compliant and lead-free
● Support Digital Monitoring interface
● Single +3.3V power supply
● Compliant with SFF+MSA and SFF-8472
● Metal enclosure, for lower EMI
● Meet ESD requirements, resist 8KV direct contact voltage
● Case operating temperature
        Commercial: 0 ~ +70℃
        Extended: -10 ~ +80℃
        Industrial: -40 ~ +85℃

Applications
● 10GBASE-120km & 10G Ethernet
● SDH STM64
● Other Optical Links

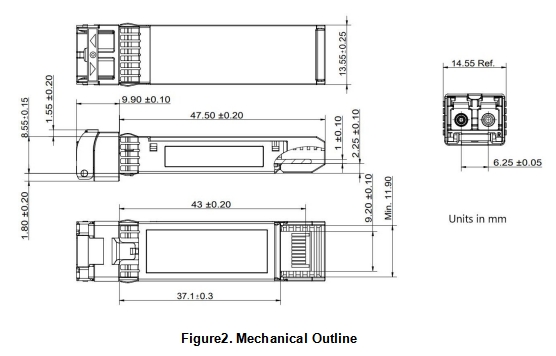

Mechanical Dimension
Ordering information

注：本产品有全国产化型号可选
本产品为SFP+系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
