10G SFP+ CWDM 20KM 光模块（1270~1570nm）
Description
10G SFP+ CWDM 20KM 光模块（1270~1570nm）
Product description
F-tone Networks SFP+LR CWDM Transceiver is a “Limiting module”, designed for 10GBASE-LR, and 2G/4G/ 8G/10G Fiber- Channel applications.The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
● Compliant with SFF-8431,SFF-8432 and IEE802.3ae
● CWDM DFB transmitter from 1270nm to 1570nm
● APD photo-detector
● Low power consumption
● Applicable for 20km SMF connection
● All-metal housing for superior EMI performance
● Advanced firmware allow customer system encryption information to be stored in transceiver
● Cost effective SFP+ solution, enables higher port densities and greater bandwidth
● RoHS compliant （Lead Free）
● Operating case temperature:
0ºC ~+70 °C
-40ºC ~ +85ºC
Applications
● 10GBASE-LR at 10.3125Gbps
● Other optical links
● 10G Ethernet
● OTU2 at 10.709Gbps

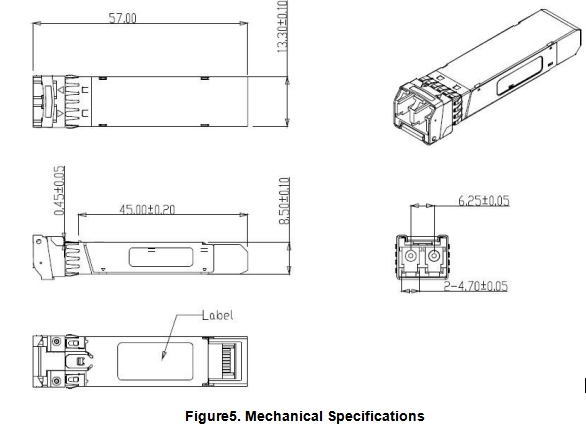

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-C271X-20D |
10Gbps,1270nm SFP+L2 20km, 0ºC ~ +70ºC |
|
FTCS-C291X-20D |
10Gbps,1290nm SFP+L2 20km, 0ºC ~ +70ºC |
|
… |
… |
|
FTCS-C571X-20D |
10Gbps,1570nm SFP+L2 20km, 0ºC ~ +70ºC |
|
FTCS-C271X-20DI |
10Gbps,1270nm SFP+L2 20km, -40ºC ~ +85ºC |
|
FTCS-C291X-20DI |
10Gbps,1290nm SFP+L2 20km,-40ºC ~ +85ºC |
|
… |
… |
|
FTCS-C571X-20DI |
10Gbps,1570nm SFP+L2 20km, -40ºC ~ +85ºC |
注：本产品有全国产化型号可选
本产品为SFP+ CWDM系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
