100GBASE-LR4 10km CFP4 Optical Transceiver

100GBASE-LR4 10km CFP4 Optical Transceiver

0.0/5 rating (0 votes)

Specifications

  • 产品型号: CFP4-100G-LR4-1310NM
  • 兼容品牌: 全系列
  • 封装类型: CFP4
  • 传输速率: Supports 103.1Gb/s aggregate bit rate
  • 传输距离: Maximum link length of 10km on Single Mode Fiber (SMF)
  • 发射波长: PIN Photo detector
  • 接收波长: 4x25Gb/s DFB-based LAN-WDM transmitter
  • 工作温度: 商业级0℃~+70℃/工业级-40℃~+85℃ 可选
  • 数字诊断: 带DDM
  • 接收灵敏度: 4x25Gb/s DFB-based LAN-WDM transmitter
  • 接收灵敏度: 4x25Gb/s DFB-based LAN-WDM transmitter

Description

CFP4-100G-LR4 100G CFP4 optical transceiver

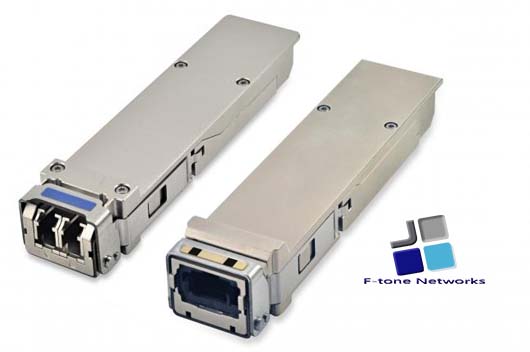

 CFP-100G-LR4-SR4

F-tone Networks's CFP4-100G-LR4 100G CFP4 optical transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and F-tone Networks Application Note FTAN-2015xx. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC, and F-tone Networks Application Note FTAN-201538.

Supports 103.1Gb/s aggregate bit rate
Power dissipation < 5W
RoHS-6 compliant (lead-free)
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x25Gb/s DFB-based LAN-WDM transmitter
4x25G electrical interface
Duplex LC receptacles
MDIO management interface
Commercial case temperature range: 0°C to 75°C/-40℃~+85℃ 可选
