Description
The F-tone Networks 100G CFP DCO module is the CFP optical transponder which is a hot pluggable form factor designed for high speed optical networking application. The module is designed for 100Gigabit Ethernet and OTU4 application, CAUI and OTL4.10 electrical interface and MDIO module management interface. The module converts 10-lane OTU4/100GE electrical data streams to DP-D/QPSK optical output signal in Egress, and also converts DP-D/QPSK optical input signals to 10-lane electrical data streams in Ingress. This 10-lane electrical signal is fully compliant with 802.3ba CAUI specification and OIF-CEI-03.1 specification, and allows M6 host PCB trace up to 25cm. The block diagram is illustrated below, DSP is used for electric data signals generation and recovery, ITLA is a full C_Band wavelength tunable assemble which is used for optical signal carrier in egress and for coherent receive in ingress, MZM is used for E-O convert in egress and ICR is used for O-E convert in ingress, the optical signals format is DP-D/QPSK, EDFA is used for optical signal amplify that we can get suitable output optical power.

Features
● Operating optical data rate up to 128Gbps
● Transmission distance up to 2000km
● CD tolerance max. 40000ps/nm
● DGD tolerance 50ps
● Low latency HD-FEC/SD-FEC
● Full C-Band 50GHz ITU-T Grid
● Built in Client and line OTN Processing
● Hot pluggable electrical interface
● Typical power dissipation 21/28W
● Single 3.3V power supply
● 2*LC Fiber connections
● CFP MSA compliant
● IEEE 802.3ba MAC compliant
● OTL4.10 and CAUI-10 compatible
● PRBS generation and detection for line and host interfaces
● RoHS compliant(Lead Free)
● ZR、MR、LH Application
● Single ITLA
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3bj;
● ITU-T G.709/Y.1331 for Optical transport network
● Switch to switch interface or Switch to router interface
● Access, Metro, Long-haul Ethernet DWDM Networks

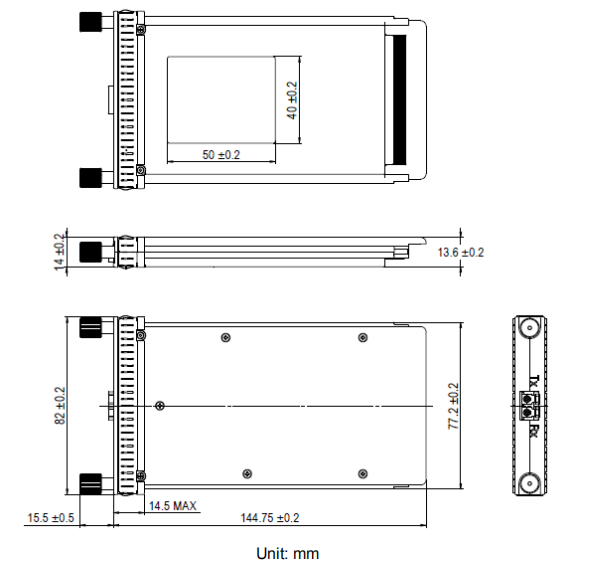

Mechanical Dimensions

Ordering information
