10.3125Gbps 单路光收发一体模块

10.3125Gbps 单路光收发一体模块

0.0/5 rating (0 votes)

Description

10.3125Gbps 单路光收发一体模块

产品描述
该单路光收发一体光模块是一款低功耗,高性能的单纤双向尾纤型收发一体光模块。传输距离1km,3.3V直流供电,-45到85℃。传输速率为10.3125Gbps,发射波长1270/1330nm,接收波长范围 1320~1340/1260~1280nm。发射部分信号引脚(TD+和 TD-)与接收部分信号引脚(RD+和 RD-)接口采用交流 CML 电平。模块还具有发送信号关断控制。
模块体积小,重量轻,可安装在空间狭小的插板或机箱内。可定制尾纤接头方式,为光纤链路提供可靠的连接。
模块可广泛应用于各种数字光通信系统,如万兆位以太网、光纤通道、SONET/SDH、交换机等。

产品特性
● +3.3V供电
● 传输速率10.3125Gbps
● 发射中心波长1270/1330nm,单模光纤,传输距离1km
● 单纤双向尾纤式
● 适应于高速传输的表贴I/O引脚
● 工作温度范围:-45℃~+85ºC
● 接口电平为CML

产品性能指标

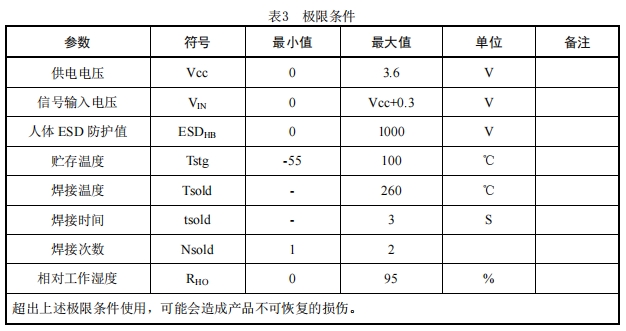

1.极限条件240318 14

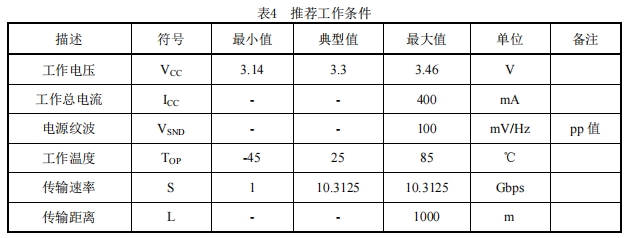

2.推荐工作条件240318 14

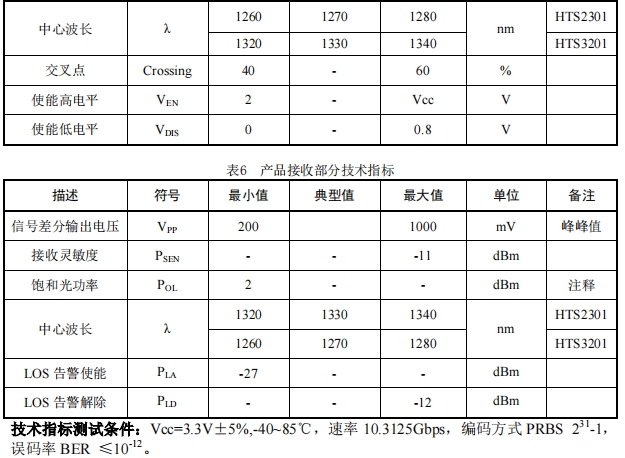

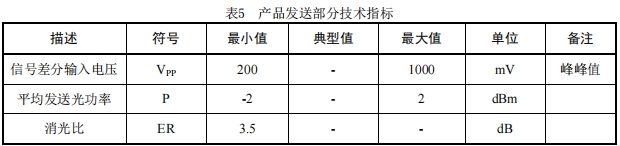

3.产品技术指标240318 14240318 14

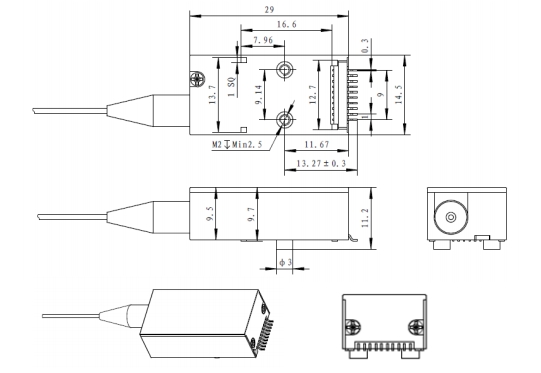

结构尺寸

240318 14













注:本产品有全国产化型号可选

本产品仅展示部分参数,如有需要,请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
