1.25Gbps,850nm,超小紧凑型光模块

1.25Gbps,850nm,超小紧凑型光模块

0.0/5 rating (0 votes)

Description

1.25Gbps,850nm,超小紧凑型光模块

描述
FTRS-8512-DZ01双LC超小紧凑型光收发模块将发送和接收部分封装在一个小尺寸金属壳体内,增强了模块抗电磁干扰能力。光发射部分采用VCSEL激光器,发送信号引脚(TD+和TD-)接口电平标准为CML。光接收部分包括PIN、前置跨阻放大器和限幅放大器,接收信号引脚(RD+和RD-)接口电平标准为CML 接收信号指示引脚(SD)接口电平为标准LVTTL。通过发射使能引脚(TDIS)可关断发端,使模块进入节电模式。
模块引脚及安装尺寸全面兼容F-tone Networks的同类产品。功能引脚,安装及外形尺寸可根据用户要求定制,应用灵活。

特性
● 速率1.25Gbps,850nm VCSEL激光器
● 适应于高速信号完整性的表贴I/o引脚
● 3.3V单电源供电
● 宽工作温度:-40℃~+85℃
● 紧凑的结构设计
● 抗振动设计
● 引脚及安装尺寸全面兼容F-tone Networks产品

应用
● 千兆位以太网
● 光纤通道
● SONET/SDH
● 交换机

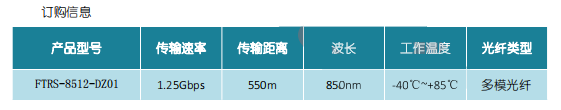

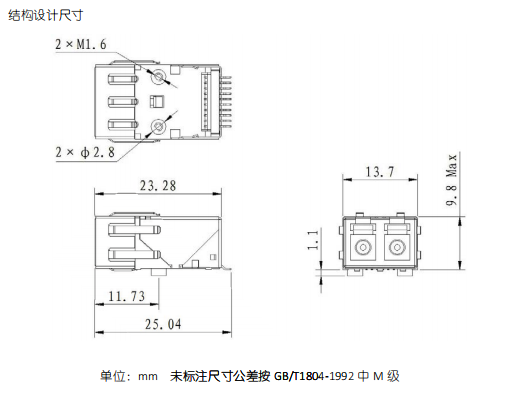

A40A40













本产品为FTRS系列,仅展示部分参数,如有需要,请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
