0~2Mbps 1X9 LVTTL 1550nm SM Transceiver (100Km)

0~2Mbps 1X9 LVTTL 1550nm SM Transceiver (100Km)

0.0/5 rating (0 votes)

Description

0~2Mbps 1X9 LVTTL 1550nm SM Transceiver (100Km)

FEATURES
● Single +3.3V Power Supply
● Duplex SC/FC/ST Connector
● 1550nm DFB Transmitter
● DC~2M Data Rate
● LVTTL Input & Output
● Industry Standard 1×9 Package
● Operating case temperature:
      FTTR-15L1-H0 ： 0 ℃to 70℃
      FTTR-15L1-H0I ： -40 ℃to 85℃

APPLICATIONS
● Low Rate Bus transmission
● Unbalanced Signal transparent transmission

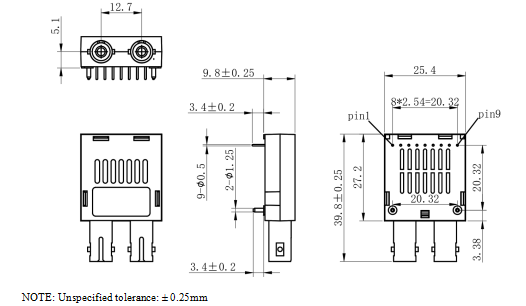

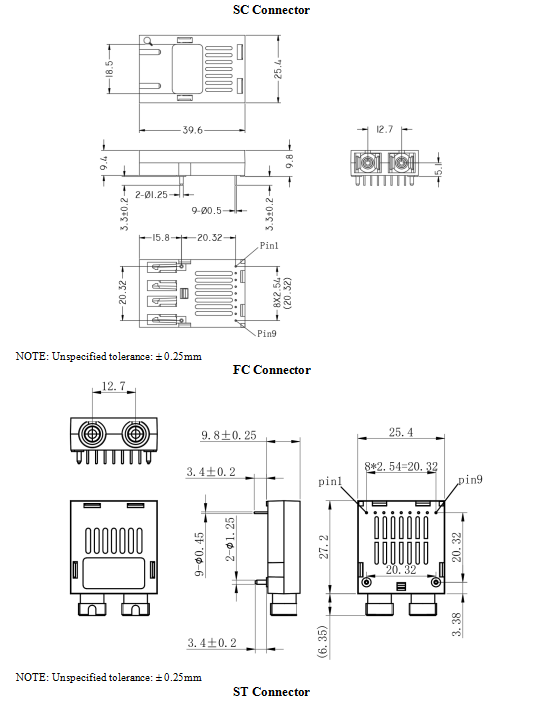

Mechanical Dimensions

105105
Ordering Information

P/No.

Package

Bit Rate(Mb/s)

Dist.(km)

Wavelength(nm)

Volt.(V)

TX Power (dBm)

RX Sens(dBm)

Temp.(℃)

FTTR-15L1-H0

SC/FC/ST

0~2

100

1550

3.3

-3 to +2

-30

0 ~70

FTTR-15L1-H0I

SC/FC/ST

0~2

100

1550

3.3

-3 to +2

-30

-40 ~85

NOTE:  Interface options:SC/FC/ST.











注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
